Description
WD03 Gas Collection Hood
Using PFA sealed cap, longer life, dealing effect well.
Clip-on sealing cap, easy for changing.
Specialized water jet vacuum pump is adopted, don’ t need electric power.
Drip tray design, reduce corrosion damage from acid solutions.
Characteristics:

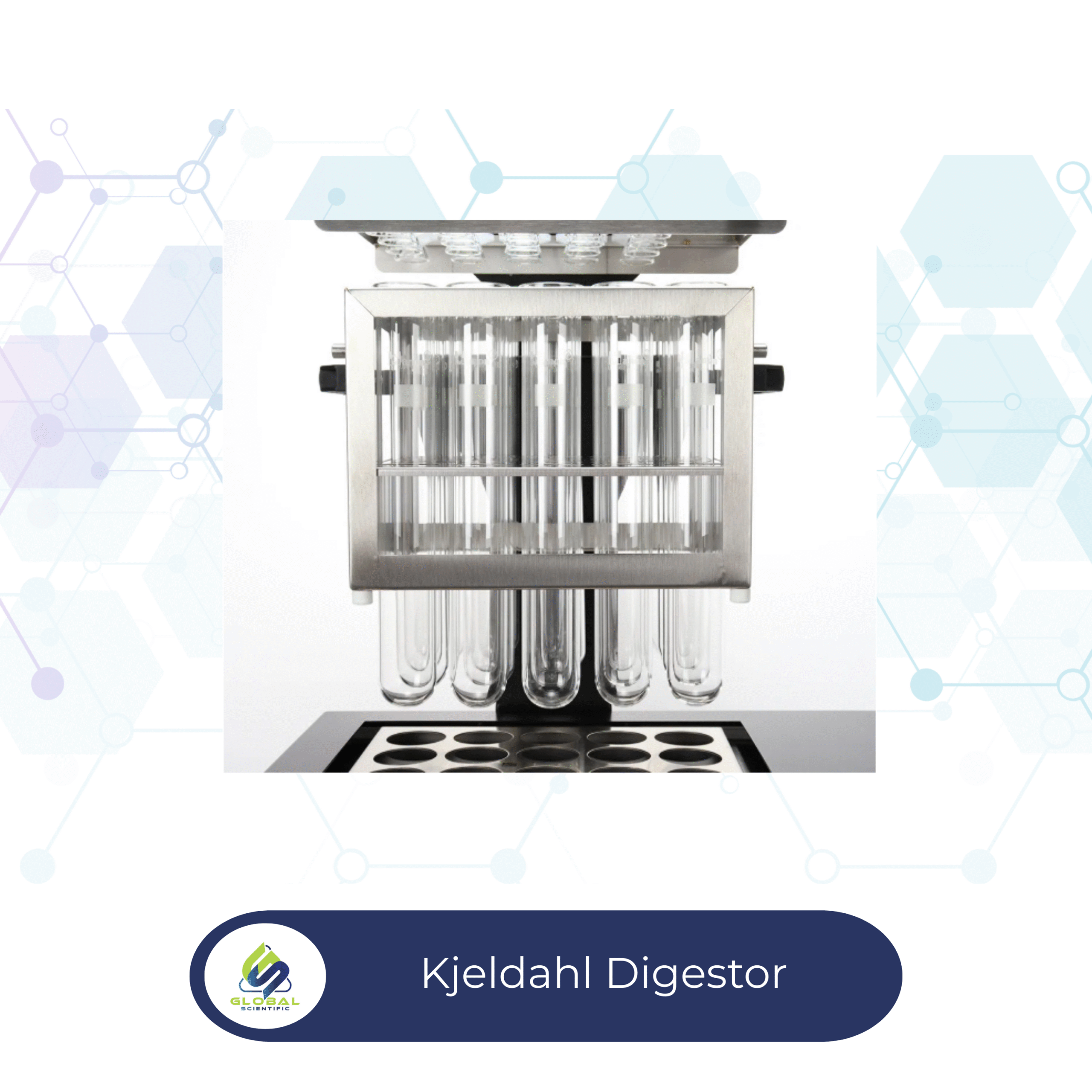

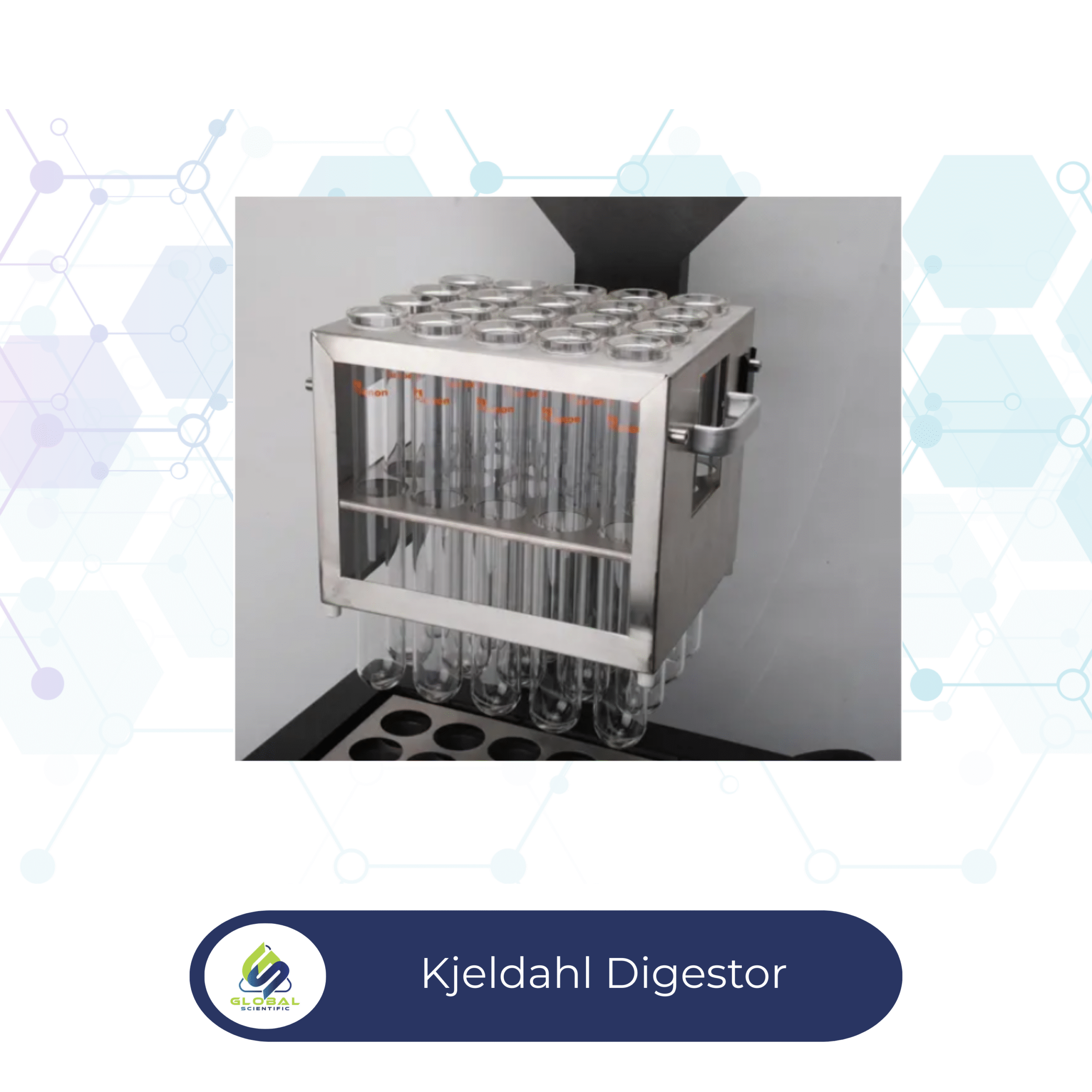

Can digest 20 samples at the same time

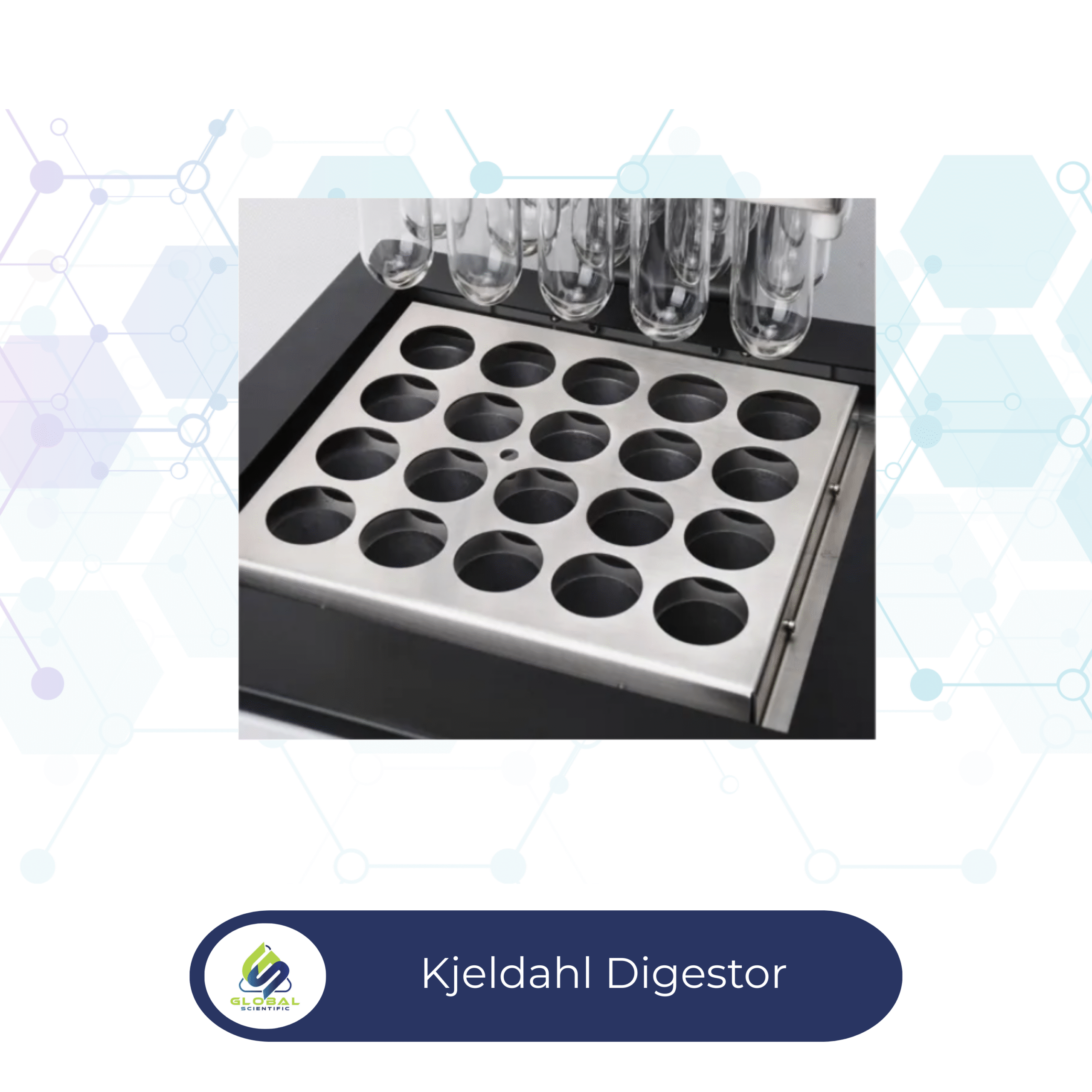

Using infrared radiation graphite conduction heating method, the heating speed is fast, and the temperature difference between the holes is small
Adopt PID temperature control technology, high temperature control accuracy, fast heating speed, only 25 minutes from room temperature to 400℃
It has two heating methods: curve heating and linear heating, 500 groups of digestion programs can be edited and stored, and each group can be set up to 25 segments
Temperature and time gradient to meet different experimental needs of users
The surface of the instrument is coated with Teflon, and the whole machine is treated with anti-corrosion treatment to avoid the corrosion of the machine by acidic liquids during the experiment
Using 5.6 inch large screen true color LCD display system, intuitive and convenient operation
The whole machine has multiple protections such as over-voltage, over-current, over-heating, etc., and over-temperature alarm function
Adopt advanced ceramic and air duct heat insulation technology to make the experiment operation safer
Standard simple cooling rack, digestion tube can be cooled quickly, improve work efficiency
Optional waste gas neutralization system, through condensation, neutralization and drying to eliminate the acid gas generated during the experiment
S402 Scrubber
Mould design, compact appearance.
Absorption device area is translucence design, easy for inspection and changing.
Suction pressure is adjustable when become negative, to avoid acid gas spilling oremptying.
Anticorrosion vacuum pump, low noise, large suction, reduce wasted gas exhausting and environmental friendly.
Ternary filtration system (water condensation, alkali neutralization and active carbon filtration) ensure perfect neutralization and absorption performance. PTFE anticorrosion pipe design, improve using life.
